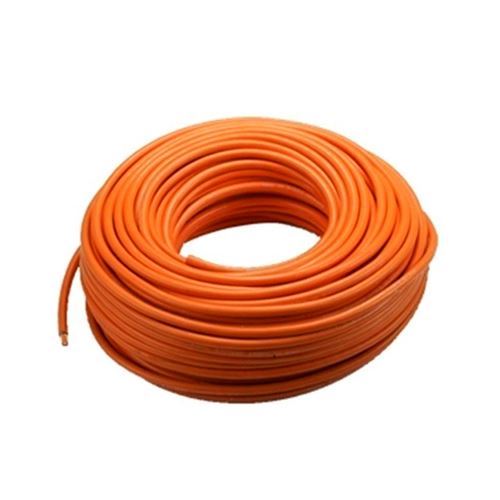

35mm2 100 Metre Welding Cable Double Insulated Orange
35mm2 100 Metre Welding Cable Double Insulated Orange

35mm2 100 Metre Welding Cable Double Insulated Orange

Stock Code: FAW00038565
Manufacturer Part No: S35DI
Available for Despatch in 1 working days.
£1,110.00 (exc VAT) per Each
Quantity: - +

35mm² 100 Metre Welding Cable Double Insulated Orange

Description
This 35mm² double insulated welding cable is designed for professional welding power applications where enhanced protection, flexibility and dependable current carrying performance are required. Manufactured with fine stranded copper conductors and a durable orange double insulation sheath, it provides excellent flexibility and increased resistance to abrasion and demanding workshop conditions. Supplied in a 100 metre reel, it is suitable for welding leads, earth return cables and custom cable assembly manufacture.

Key Features
• Double insulated welding cable
• Conductor cross-sectional area: 35mm²
• Reel length: 100 metres
• Orange insulation sheath
• Maximum conductor wire diameter: 0.31mm
• Insulation thickness: 2.2mm
• Mean overall diameter: 12.0mm
• Maximum conductor resistance at 20°C: 0.554 Ohms/km
• Current carrying capacity at 60% duty cycle: 290 Amps
• Fine stranded copper conductor construction
• Enhanced protection through double insulation
• Suitable for welding and power transmission applications
• Part No: S35DI

Applications
• MIG welding equipment
• TIG welding equipment
• MMA / Arc welding equipment
• Earth return leads
• Welding machine cable assemblies
• Fabrication and engineering workshops
• Industrial welding applications
