50mm2 100 Metre Welding Cable Double Insulated Orange
50mm2 100 Metre Welding Cable Double Insulated Orange

50mm2 100 Metre Welding Cable Double Insulated Orange

Stock Code: FAW00038567
Manufacturer Part No: S50DI
Available for Despatch in 1 working days.
£1,740.00 (exc VAT) per Each
Quantity: - +

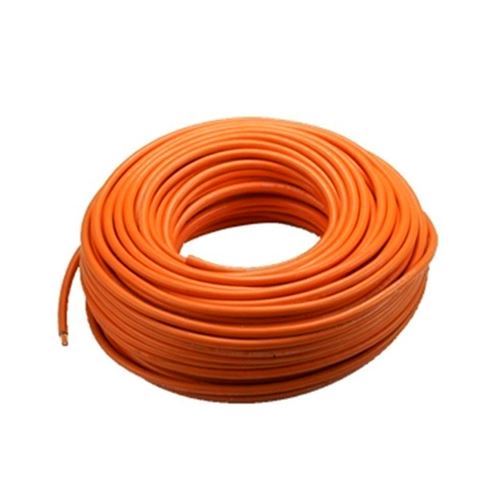

50mm² 100 Metre Welding Cable Double Insulated Orange

Description
This 50mm² double insulated welding cable is designed for demanding welding power applications where enhanced protection, flexibility and high current carrying performance are required. Manufactured with fine stranded copper conductors and a durable orange double insulation sheath, it provides excellent flexibility, improved abrasion resistance and dependable electrical conductivity. Supplied in a 100 metre reel, it is ideal for welding leads, earth return cables and custom cable assembly manufacture.

Key Features
• Double insulated welding cable
• Conductor cross-sectional area: 50mm²
• Reel length: 100 metres
• Orange insulation sheath
• Maximum conductor wire diameter: 0.31mm
• Insulation thickness: 2.4mm
• Mean overall diameter: 13.5mm
• Maximum conductor resistance at 20°C: 0.386 Ohms/km
• Current carrying capacity at 60% duty cycle: 365 Amps
• Fine stranded copper conductor construction
• Enhanced protection through double insulation
• Suitable for heavy duty welding and power transmission applications
• Part No: S50DI

Applications
• MIG welding equipment
• TIG welding equipment
• MMA / Arc welding equipment
• Earth return leads
• Welding machine cable assemblies
• Fabrication and engineering workshops
• Heavy duty industrial welding applications

No detailed specifications are available for this product.
