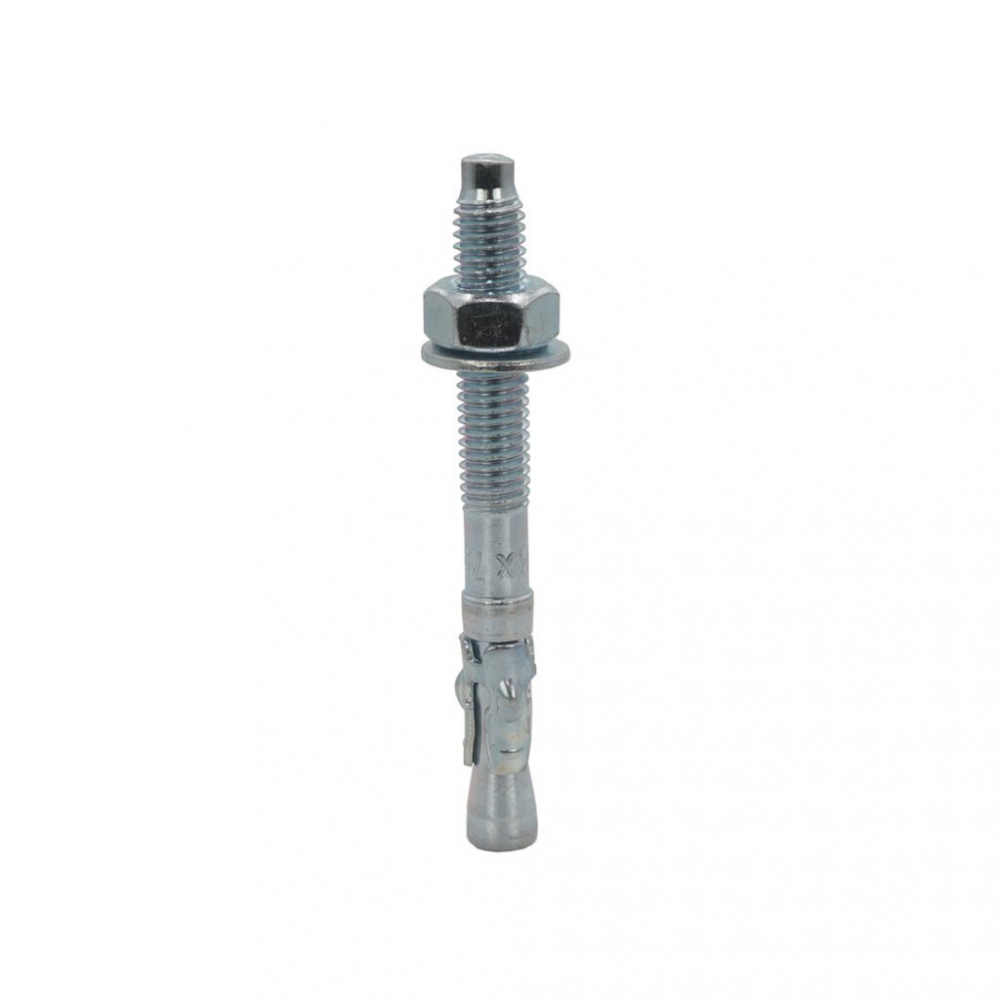

M8x75 Through Anchor ETA7 Zinc Plated JCP Pack 50

Stock Code: FAW00015223
Manufacturer Part No: AWA08075

Available for Despatch in 1 working days.

Descriptions

M8 x 75 Through Anchor ETA Option 7 Zinc Plated JCP - Pack 50

Description
A high-performance torque controlled through anchor designed for secure fixing into concrete. Manufactured from zinc plated carbon steel, this JCP anchor provides reliable corrosion resistance for internal and low humidity environments. The through fixing design allows for quick and accurate installation without the need for marking out, removal and repositioning, ensuring consistent and dependable fixing of fixtures.

Key Features

Through fixing design allows installation directly through the fixture for fast and accurate positioning
Torque controlled anchor suitable for use in non-cracked concrete
ETA Option 7 approved for structural applications
Zinc plated finish for internal and dry environment use
Suitable for concrete grades C20/25 and above
Thread size: M8
Length: 75mm
Drill hole size: 8mm
Minimum hole depth: 65mm
Maximum fixture thickness: 10mm
Thread length: 40mm
Material: Carbon Steel
Finish: Zinc Plated
Pack quantity: 50
Part No: AWA08075
