95mm2 50 Metre Welding Cable Single Insulated Black
95mm2 50 Metre Welding Cable Single Insulated Black

95mm2 50 Metre Welding Cable Single Insulated Black

Stock Code: FAW00038570
Manufacturer Part No: S95
Available for Despatch in 1 working days.
£1,350.00 (exc VAT) per Each
Quantity: - +

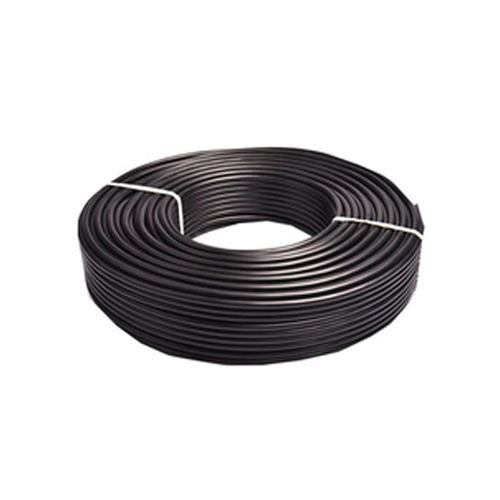

95mm² 50 Metre Welding Cable Single Insulated Black

Description
This 95mm² single insulated welding cable is designed for the most demanding welding power applications where exceptional current carrying capacity, flexibility and durability are required. Manufactured with fine stranded copper conductors and a heavy-duty black insulating sheath, it delivers excellent electrical performance while remaining flexible for fabrication, engineering and industrial environments. Supplied in a 50 metre reel, it is ideal for welding leads, earth return cables and custom heavy-duty cable assemblies.

Key Features
• Single insulated welding cable
• Conductor cross-sectional area: 95mm²
• Reel length: 50 metres
• Black insulation sheath
• Maximum conductor wire diameter: 0.31mm
• Insulation thickness: 2.8mm
• Mean overall diameter: 18.2mm
• Maximum conductor resistance at 20°C: 0.206 Ohms/km
• Current carrying capacity at 60% duty cycle: 560 Amps
• Highly flexible stranded conductor construction
• Suitable for heavy duty welding and power transmission applications
• Part No: S95

Applications
• MIG welding equipment
• TIG welding equipment
• MMA / Arc welding equipment
• Earth return leads
• Welding machine cable assemblies
• Fabrication and engineering workshops
• Heavy duty industrial welding applications
