120mm2 50 Metre Welding Cable Single Insulated Black
120mm2 50 Metre Welding Cable Single Insulated Black

120mm2 50 Metre Welding Cable Single Insulated Black

Stock Code: FAW00038559
Manufacturer Part No: S120
Available for Despatch in 1 working days.
£34.20 (exc VAT) per Each
Quantity: - +

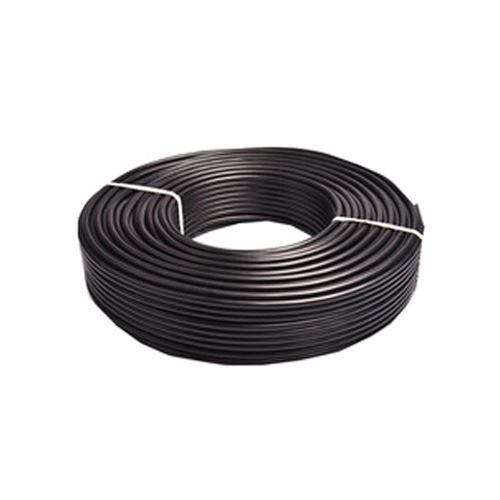

120mm² 50 Metre Welding Cable Single Insulated Black

Description
This 120mm² single insulated welding cable is designed for the most demanding heavy-duty welding and power transmission applications where maximum current carrying capacity, durability and flexibility are essential. Manufactured with fine stranded copper conductors and a robust black insulating sheath, it provides excellent electrical conductivity and flexibility for fabrication, engineering and industrial environments. Supplied in a 50 metre reel, it is ideal for welding leads, earth return cables and custom heavy-duty cable assemblies.

Key Features
• Single insulated welding cable
• Conductor cross-sectional area: 120mm²
• Reel length: 50 metres
• Black insulation sheath
• Maximum conductor wire diameter: 0.31mm
• Insulation thickness: 3.0mm
• Mean overall diameter: 20.4mm
• Maximum conductor resistance at 20°C: 0.161 Ohms/km
• Current carrying capacity at 60% duty cycle: 650 Amps
• Highly flexible stranded conductor construction
• Suitable for heavy duty welding and power transmission applications
• Part No: S120

Applications
• MIG welding equipment
• TIG welding equipment
• MMA / Arc welding equipment
• Earth return leads
• Welding machine cable assemblies
• Fabrication and engineering workshops
• Heavy duty industrial welding applications

No detailed specifications are available for this product.
