Jasic PRO MIG 350 Synergic Multi Process Separate 400V Inverter Package c/w 10Mtr Interconnecting Ca

Stock Code: FAW00042339
Manufacturer Part No: ZXJM-350P-10M

Available for Despatch in 1 working days.

Descriptions

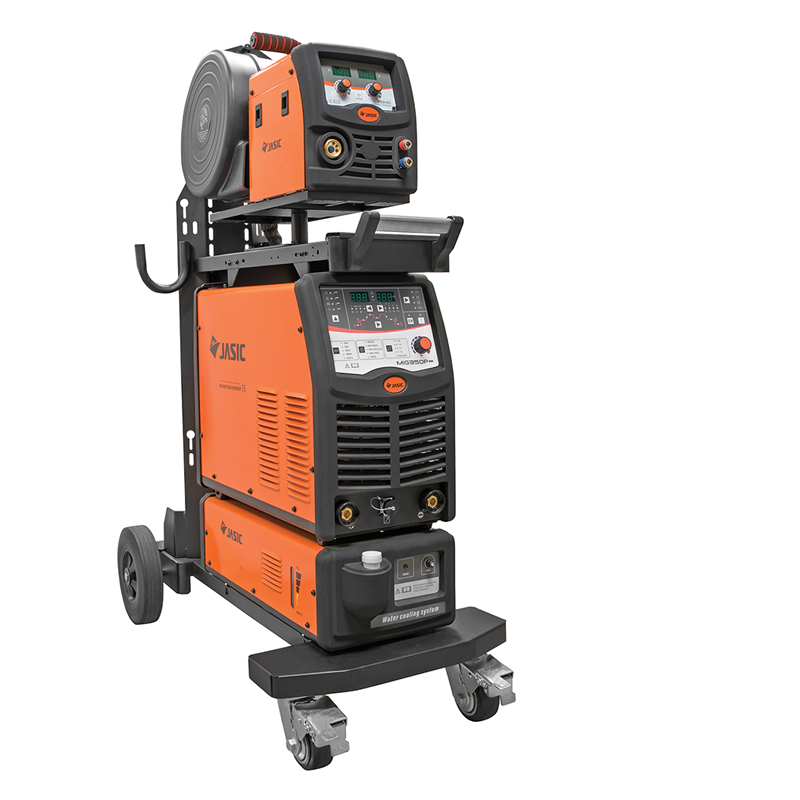

Jasic PRO MIG 350P Synergic Multi Process Separate Inverter Package with Water Cooler and 10m Interconnecting cables 400V

Premium 350 amp three phase pulse MIG welding system with separate wire feed unit, water cooling, and 10 metre interconnecting cables for superior weld quality and maximum working flexibility.

Product Overview

The Jasic PRO MIG 350P Synergic Multi Process Separate inverter welder with water Cooler is a high-performance pulse MIG system designed for precision fabrication and industrial welding applications. Featuring a 3 phase inverter power source and separate 4 roll wire feed unit, it delivers outstanding arc stability, reduced spatter, and consistent weld quality across a wide range of materials.

This upgraded configuration includes both an integrated water cooling system and 10 metre interconnecting leads. The pulse and double pulse functions provide enhanced weld appearance and control, while the longer lead set allows increased separation between the power source and feeder, ideal for large fabrication bays and complex assemblies.

Key Features

MIG/MAG pulse, double pulse and MMA multi-process capability
350A output for heavy fabrication and industrial use
Pulse and double pulse welding for superior weld quality
10m interconnecting cables for extended working range
Advanced DSP digital inverter technology
Synergic control with pre-programmed curves for common materials
Separate 4 roll wire feed unit with encoder feedback
Adjustable welding parameters including pulse frequency
Digital control interface for precise setup
Reduced spatter and improved weld finish
2T / 4T / Spot welding modes
Self-diagnostic system for reliability
Integrated water cooling system for continuous duty welding
Generator compatible (AVR required)
Heavy-duty inverter trolley for full-size gas cylinder
Model No: JM- 350P-10M

Technical Specifications

Input Voltage: 400V three phase
Output Range: approx. 10 – 350A
Duty Cycle: approx. 350A @ 60%
Wire Feed System: 4-roll separate unit
Wire Feed Speed: approx. 1 – 18 m/min
Wire Spool Size: 300mm (D300)
Protection Class: IP21S / Class F
System Configuration: Inverter + feeder + water cooler + 10m leads
Weight: approx. 117 kg

View full product details

What’s Included

MIG 350P inverter power source
Separate 4 roll wire feed unit
Water cooling unit
10m interconnection cable set
MIG welding torch
Earth return lead and clamp
Gas hose and regulator
Heavy-duty trolley
Machine supplied with no plug
5 year warranty (subject to registration)

Optional Accessories

Longer interconnecting leads (15m / 20m)
Push-pull torch or spool gun for aluminium welding
Remote control systems
Advanced welding consumables

Specifications

Brand	Jasic
Ouput Amperage	350
Power Supply	400V
Generator	No
Materials Welded	Steel/Stainless Steel/Alum
Material Thickness (mm) (Steel/St/St/Alum)	18/15/12
Application/Use	Production
