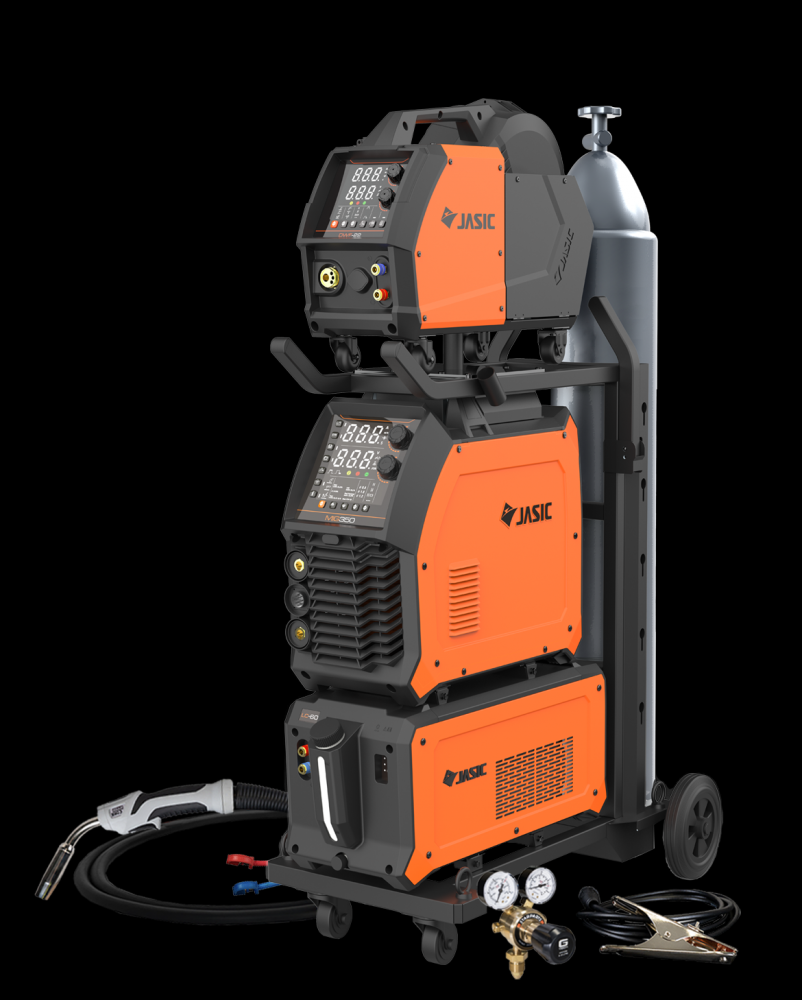

Jasic EVO MIG 350S Multi Process Separate Inverter with Water Cooler and 10m Interconnecting Cables 400V

Fully specified 350 amp three phase digital welding system with separate wire feed unit, water cooling, and 10 metre interconnecting cables for continuous duty performance and maximum working flexibility.

Product Overview

The Jasic EVO MIG 350S water cooled inverter is a high performance industrial welding system designed for demanding fabrication and production environments. Featuring a powerful 3 phase inverter power source and separate 4 roll wire feed unit, it delivers precise arc control, high output performance, and consistent weld quality across extended welding cycles.

This fully upgraded configuration includes both a water cooling system and 10 metre interconnecting cables. Water cooling enables continuous welding at high amperage without torch overheating, while the extended leads allow greater separation between the power source and feeder, ideal for large fabrication areas and complex workpieces.

Key Features

  • MIG/MAG, MMA and DC Lift TIG multi process capability
  • 350A output for heavy industrial fabrication and production
  • Water cooling system for continuous duty welding
  • 10m interconnecting cables for extended working range
  • Advanced ARM and DSP digital inverter control
  • Separate wire feed unit with ClearVision HD digital display
  • Full synergic and manual welding modes
  • Enhanced dual drive 4 roll wire feed system (37.45mm rollers)
  • Program memory storage for repeatable jobs
  • 2T / 4T / Cycle / Spot trigger modes
  • Crater fill and adjustable inductance for weld quality
  • On demand cooling and auto sleep mode (low energy consumption)
  • Remote control options (wired, wireless and mobile app)
  • USB Type C connectivity for updates
  • IP23S protection for industrial environments
  • Model No: EM-350S-10M-WC

Technical Specifications

  • Input Voltage: 400V three phase
  • Output Range: approx. 30 – 350A
  • Duty Cycle: approx. 350A @ 40–50%
  • Wire Feed System: dual drive 4 roll separate unit
  • Wire Feed Speed: approx. 2 – 24 m/min
  • Wire Spool Size: D300
  • Efficiency: approx. 85–88%
  • Protection Class: IP23S
  • System Configuration: Inverter + feeder + water cooler + 10m leads


What’s Included

  • EVO MIG 350S inverter power source
  • Separate 4 roll wire feed unit
  • Water cooling unit
  • 10m interconnection cable set
  • Water-cooled MIG torch
  • Machine supplied with no plug
  • 5 year warranty (subject to registration)
BrandJasic
Ouput Amperage350
Power Supply400V
GeneratorNo
Materials WeldedSteel/Stainless Steel/Alum
Material Thickness (mm) (Steel/St/St/Alum)18/15/12
Application/UseProduction
