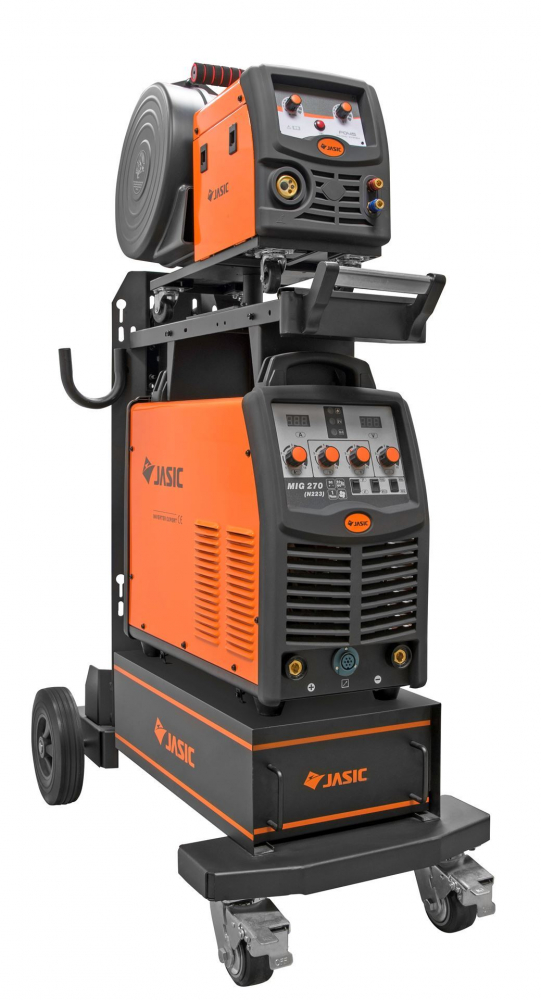

Jasic PRO MIG 270 Multi Process W/C Separate 230V Inverter Package c/w 10Mtr Interconnecting Cables
Jasic PRO MIG 270 Multi Process W/C Separate 230V Inverter Package c/w 10Mtr Interconnecting Cables

Jasic PRO MIG 270 Multi Process W/C Separate 230V Inverter Package c/w 10Mtr Interconnecting Cables

Stock Code: FAW00042330
Manufacturer Part No: ZXJM-272S-10M-WC
Available for Despatch in 1 working days.
£3,135.00 (exc VAT) per Each
Quantity: - +

Jasic PRO MIG 270 Multi Process Separate Inverter Package with Water Cooler & 10m Interconnecting Cables 230V

Fully specified 270 amp industrial multi-process welding system with separate wire feed unit, integrated water cooling, and extended 10m interconnecting cables for maximum reach and continuous duty performance.

Product Overview

The Jasic MIG 270 Separate inverter welder is a high performance industrial welding solution designed for demanding fabrication and production environments. Featuring a powerful inverter power source combined with a separate 4 roll wire feed unit, the system provides stable arc performance, excellent weld quality, and reliable output for repetitive welding applications.

This fully upgraded configuration includes both a water cooling system and 10 metre interconnecting cables. Water cooling enables extended duty cycles and protects the torch during high amperage welding, while the longer leads allow greater separation between the power source and feeder, improving accessibility across larger workspaces and fabrication bays.

Key Features

  • MIG/MAG, MMA and Lift TIG multi process capability
  • 270A output for heavy duty fabrication and industrial work
  • Separate wire feed unit for flexibility and improved wire control
  • Water cooling system – ideal for continuous welding and high duty cycle operation
  • 10m interconnecting cables extended working range and flexibility
  • 4 roll wire feed system for consistent and reliable wire delivery
  • Digital amp and volt display for accurate setup
  • High duty cycle suitable for long welding runs
  • Advanced IGBT inverter technology
  • Burn back control and wire inching functions
  • 2T/4T trigger operation modes
  • Gas check function and status LED indicators
  • Adjustable inductance for arc control
  • Generator compatible with AVR protection
  • Heavy duty trolley for full size gas cylinder
  • Model No: JM-272S-10M-WC

Technical Specifications

  • Input Voltage: 230V single phase
  • Output Range: approx. 30 – 270A
  • Duty Cycle: approx. 270A @ 30%
  • Wire Feed System: 4 roll drive, separate unit
  • Wire Feed Speed: approx. 0 – 16 m/min
  • Voltage Range: approx. 11 – 29V
  • No Load Voltage: approx. 54V
  • Protection Class: IP21S / Class F
  • System Configuration: Inverter + feeder + water cooler + 10m leads
  • Weight: approx. 100 kg


What’s Included

  • MIG 270 inverter power source
  • Separate 4 roll wire feed unit
  • Water cooling unit
  • 10m interconnecting cable set
  • MIG torch (water cooled compatible)
  • Earth return lead and clamp
  • Gas hose and regulator
  • Heavy duty trolley system
  • Machine supplied with no plug
  • 5 year warranty (subject to registration)

Optional Accessories

  • MMA leads package
  • Industrial welding torches
  • Spool gun for aluminium welding
  • Extended duty welding consumables
BrandJasic
Ouput Amperage270
Power Supply230V
GeneratorNo
Materials WeldedSteel/Stainless Steel/Alum
Material Thickness (mm) (Steel/St/St/Alum)12/10/8
Application/UseHeavy Trade
