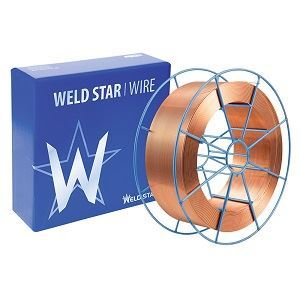

1.0mm HF600 MIG Wire Weld Star Pack 15Kg

1.0mm HF600 MIG Wire Weld Star Pack 15Kg

Stock Code: FAW00002738
Manufacturer Part No: 6031100317
£243.00 (exc VAT) per Pack
Quantity: - +

High Hardness Hardfacing Wire for Abrasion and Impact Resistance

Weld Star HF 600 is a copper-coated solid wire formulated for hardfacing and wear protection of carbon-manganese steels. It produces a martensitic weld deposit with a hardness of 54–60 HRC, offering excellent resistance to abrasion and moderate impact.

This high-performance overlay wire contains a Cr-Si alloy structure and is suitable for semi-automatic and fully automated welding processes. A buffer layer is recommended when working with hard-to-weld or high-alloy base materials. The deposit can only be machined by grinding unless tempered.

Supplied in precision layer wound spools for optimal feeding performance. Commonly used across the mining, construction, and materials handling sectors.

Key Features

  • High Hardness Deposit – 54–60 HRC with excellent abrasion resistance
  • Tough Martensitic Structure – Resists impact and mechanical wear
  • Cr-Si Alloy Composition – Ideal for tools and components exposed to severe wear
  • Precision Layer Wound – Smooth feeding in semi-automatic and robotic setups
  • Grind-Only Machinability – Deposit is non-machinable unless tempered
  • Vacuum-Sealed Packaging – Prevents moisture absorption during storage
  • Certified Quality – Traceable test certificates available

Typical Applications

  • Mining and quarrying: Excavator buckets, crushers, jaws
  • Foundries: Pneumatic hammers, anvils
  • Manufacturing: Cutting tools, guide rollers, knives
  • Agricultural and heavy equipment: Screws, caterpillar components, cold working tools

Typical Base Materials Include:

X45CrSi9-3, 4Xr9Si2, X45CrSi8, HNV1, HNV2, SUH11, X45CrSi 9-3, 401 S45, SUH 1, STR 1, 40Ch9S2

Standards

EN ISO 14700: S Fe 8
DIN 8555: MSG 6-GZ-60-GP



Chemical Composition % (Typical)

C%

Mn%

Si%

S%

P%

Cu%

Ni%

Cr%

0.46

<0.60

3.05

<0.030

<0.040

<0.25

<0.50

9.10

Mechanical Properties (Typical)

Property

Value

Hardness (HRC)

54–60

Mechanical properties are approximate and may vary depending on heat input, shielding gas, welding parameters and other factors.

Shielding Gases

EN ISO 14175: M21 (Ar + CO2 mixtures)

Welding Positions

EN ISO 6947: PA, PB, PC, PD, PE, PF

Diameter1
Wire ClassificationHF600: Hardfacing to steel buildup
BrandWeld Star
Weight15Kg
