95mm2 50 Metre Welding Cable Double Insulated Orange
95mm2 50 Metre Welding Cable Double Insulated Orange

95mm2 50 Metre Welding Cable Double Insulated Orange

Stock Code: FAW00038571
Manufacturer Part No: S95DI
Available for Despatch in 1 working days.
£1,395.00 (exc VAT) per Each
Quantity: - +

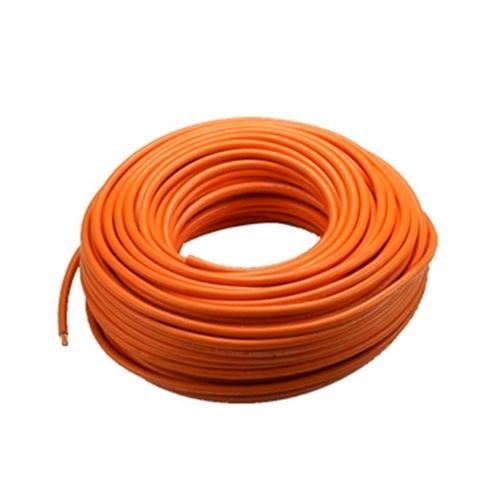

95mm² 50 Metre Welding Cable Double Insulated Orange

Description
This 95mm² double insulated welding cable is designed for the most demanding welding power applications where enhanced protection, flexibility and exceptional current carrying capacity are required. Manufactured with fine stranded copper conductors and a robust orange double insulation sheath, it delivers outstanding electrical performance while providing increased resistance to abrasion and harsh workshop conditions. Supplied in a 50 metre reel, it is ideal for welding leads, earth return cables and custom heavy-duty cable assemblies.

Key Features
• Double insulated welding cable
• Conductor cross-sectional area: 95mm²
• Reel length: 50 metres
• Orange insulation sheath
• Maximum conductor wire diameter: 0.31mm
• Insulation thickness: 2.8mm
• Mean overall diameter: 18.2mm
• Maximum conductor resistance at 20°C: 0.206 Ohms/km
• Current carrying capacity at 60% duty cycle: 560 Amps
• Fine stranded copper conductor construction
• Enhanced protection through double insulation
• Suitable for heavy duty welding and power transmission applications
• Part No: S95DI

Applications
• MIG welding equipment
• TIG welding equipment
• MMA / Arc welding equipment
• Earth return leads
• Welding machine cable assemblies
• Fabrication and engineering workshops
• Heavy duty industrial welding applications
