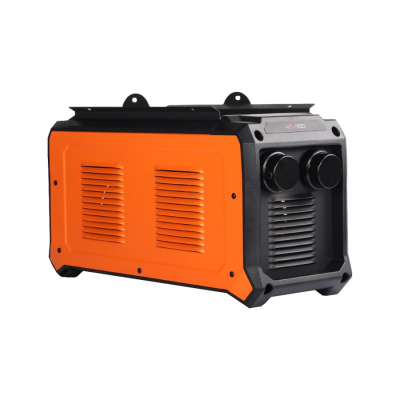

Jasic Plasma Inverter Compressor, Inverter Model: EP-100

Stock Code: FAW00042322
Manufacturer Part No: AP-150

Available for Despatch in 1 working days.

Descriptions

Air Compressor Unit for Jasic EVO EP-100 Plasma Inverter

The Jasic air compressor unit for the EVO EP-100 Plasma Inverter is purpose built to deliver stable and reliable compressed air for demanding plasma cutting applications. Designed for seamless integration, it provides the airflow and pressure required for clean, efficient cutting across a wide range of materials in both workshop and industrial environments. Its robust construction and compact design make it suitable for heavy duty use while remaining practical for site applications.

Engineered for performance and durability, this compressor features a high efficiency motor and heavy duty build quality with IP-23S protection and Class H insulation. Delivering 150 l/min airflow at up to 0.4 MPa pressure, it ensures consistent cutting performance, while the 2800 rpm motor provides reliable and efficient operation in demanding fabrication conditions.

Key Features
• Designed specifically for the Jasic EVO EP-100 Plasma Inverter
• Power supply: AC 400 V, 50/60 Hz
• Air flow of 150 l/min for high performance cutting
• Maximum pressure of 0.4 MPa
• High efficiency motor with 2800 rpm rotation speed
• Durable construction with IP-23S protection class
• Class H insulation for thermal durability
• Compact, workshop ready design
• Backed by Jasic’s 5 year warranty

Technical Specifications
• Rated Input: AC 400 V, 50/60 Hz
• Rated Input Current: 3 A
• Power Capacity: 1.5 kVA
• Max Pressure: 0.4 MPa
• Air Flow: 150 l/min
• Rotation Speed: 2800 rpm
• Protection Class: IP-23S
• Insulation Class: H
• Dimensions: 547 × 230 × 318 mm
• Weight: 23 kg

Package Includes
• Jasic EVO AP-150 Air Compressor Unit
• Integrated fittings for EVO EP-100 compatibility
• Operating manual

Applications
• Plasma cutting with Jasic EVO EP-100 systems
• Industrial fabrication and engineering workshops
• Site work requiring reliable compressed air supply
• Maintenance, repair and heavy duty cutting applications
