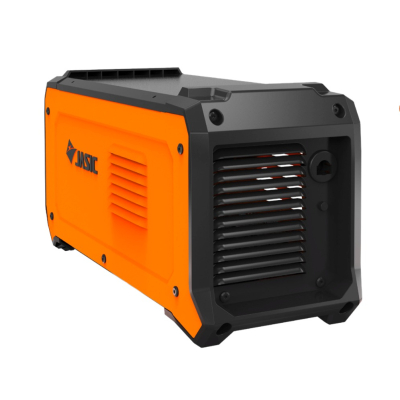

Jasic Plasma Inverter Compressor, Inverter Model: EP-45

Jasic Plasma Inverter Compressor, Inverter Model: EP-45

Stock Code: FAW00040199
Manufacturer Part No: EP-SC
Available for Despatch in 1 working days.
£515.00 (exc VAT) per Each
Quantity: - +

Air Compressor Unit for Jasic EVO EP-45 Plasma Inverter

The Jasic air compressor unit for the EVO EP-45 Plasma Inverter is purpose built to deliver stable and consistent compressed air for reliable plasma cutting performance. Designed for seamless integration with the EVO CUT-45 system, it provides the ideal airflow and pressure required for clean, efficient cuts in both workshop and on site environments. Its compact size and integrated design make it easy to install and transport alongside plasma equipment.

Engineered for durability and performance, this compressor features a robust construction with IP-23S protection and Class H insulation, ensuring dependable operation in demanding fabrication conditions. With a stable working pressure of 0.25 MPa and a maximum pressure of 0.4 MPa, combined with a high efficiency 2800 rpm motor, it delivers consistent airflow for smooth and accurate cutting results.

Key Features
• Designed specifically for the Jasic EVO EP-45 Plasma Inverter
• Wide input voltage range: AC 95–265 V, 50/60 Hz
• Stable working pressure of 0.25 MPa (max 0.4 MPa)
• High efficiency motor with 2800 rpm rotation speed
• Compact and portable design for easy transport
• Durable construction with IP23S protection class
• Class H insulation for improved thermal performance
• Lightweight unit at just 17.15 kg
• Backed by Jasic’s 5 year warranty

Technical Specifications
• Rated Input: AC 95–265 V, 50/60 Hz
• Rated Input Current: 3.7 A ±5%
• Power Capacity: 780 W
• Max Pressure: 0.4 MPa
• Working Pressure: 0.25 MPa
• Rotation Speed: 2800 rpm
• Protection Class: IP-23S
• Insulation Class: H
• Dimensions: 463 × 187 × 236 mm
• Weight: 17.15 kg

Package Includes
• Jasic EVO EP-SC Air Compressor Unit
• Integrated fittings for EVO EP-45 compatibility
• Operating manual

Applications
• Plasma cutting with Jasic EVO EP-45 systems
• Workshop fabrication and engineering environments
• Site work requiring portable compressed air supply
• Maintenance, repair and light industrial cutting tasks
