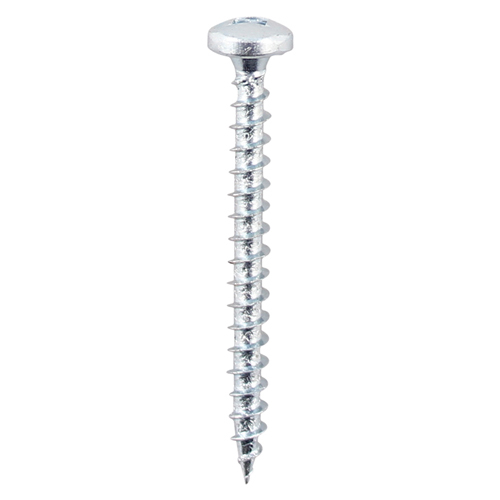

4x20 Square Pan Chipboard Screw Zinc Plated Timco Solo Range Pack 200
4x20 Square Pan Chipboard Screw Zinc Plated Timco Solo Range Pack 200

4x20 Square Pan Chipboard Screw Zinc Plated Timco Solo Range Pack 200

Stock Code: FAW00011996
Manufacturer Part No: 40020SQPSZ
Available for Despatch in 1 working days.
£1.84 (exc VAT) per Pack
Quantity: - +

Square Pan Chipboard Screw DIN 7505 Solo Zinc Plated

Manufactured to DIN 7505, these square drive pan head chipboard screws are single thread woodscrews designed for use in a wide range of timbers and man-made boards. They can also be used for fixings into masonry when installed with a suitable plastic wall plug. The zinc plated finish provides corrosion protection for general internal applications.

The pan head with square recess improves clamping performance and drive control, while the wax lubricated finish enhances insertion speed, reduces driving torque and improves resistance to corrosion. A 40° deep single thread delivers strong pull out resistance, and the sharp 25° point ensures a fast start with excellent thread acceptance. Screws up to and including 75 mm are fully threaded, with longer lengths featuring a 70 mm thread.

Key Features

  • DIN 7505 pan head chipboard screw
  • Square drive recess for improved clamping
  • Zinc plated finish
  • Wax lubricated for faster insertion and reduced driving torque
  • 40° deep single thread for high pull out resistance
  • 25° sharp point for fast start
  • Fully threaded up to 75 mm

Applications

  • Timber & softwood
  • Chipboard, MDF & man-made boards
  • Fixing into masonry with plastic plugs
  • General construction & joinery
Quantity200
Diameter4
Length20
MaterialZinc Plated
Head TypeSquare Pan
