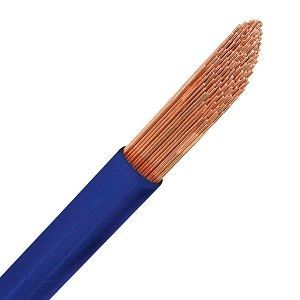

3.2mm SG1 TIG Filler Weld Star Pack 5Kg

3.2mm SG1 TIG Filler Weld Star Pack 5Kg

Stock Code: FAW00039734
Manufacturer Part No: 3010300106
£40.00 (exc VAT) per Pack
Quantity: - +

Wire for General Fabrication

Weld Star SG1 is a copper-coated TIG welding wire formulated for carbon and carbon-manganese steels. With moderate levels of silicon and manganese, it provides smooth arc characteristics, good weld bead appearance, and is especially suited for thin sheet and general structural work.

This wire is ideal for both single-pass and multi-pass applications across a wide variety of industries, delivering consistent mechanical properties and excellent operability.

Manufactured from virgin raw materials ("green wire") for superior consistency, purity, and feedability.

Key Features

  • Suitable for single and multi-pass welds
  • Excellent for thin section work and sheet metal
  • Good mechanical performance at low temperatures
  • Smooth weld bead with minimal cleaning
  • Produced using virgin raw materials for consistent quality

Typical Applications

  • General construction and structural work
  • Tanks, boilers, and pressure vessels
  • Shipbuilding and marine fabrications
  • Bridges and earth-moving machinery

Suitable Base Materials Include

  • S185, S235, S275, S355
  • Grade A, B, D, AH32 to DH36
  • L210, L240, L290, L360, L240NB, L290NB, L360NB
  • L360QB, L240MB, L290MB, L360MB, L415MB
  • X42, X46, X52, X60
  • P235T1, P235T2, P275T1, P275T2
  • P355N, P235GH, P265GH, P295GH, P355GH
  • S275, S355, S420, S275M, S275ML
  • S355M, S355ML, S420M, S420ML

Standards

  • EN ISO 636-A – W 42 4 2Si
  • AWS A5.18 – ER70S-3

Chemical Composition % (Typical)

Element

%

C

0.070

Si

0.65

Mn

1.15

P

<0.020

S

<0.020

Cu

<0.25

Cr

<0.15

Ni

<0.15

Mo

<0.050

Al

<0.020

V

<0.030

Zr+Ti

<0.15

Mechanical Properties (Typical)

  • Tensile Strength: 530 MPa
  • Yield Strength: 430 MPa
  • Elongation: 24%
  • Impact Strength: >80 J
  • Test Temperature: -40°C

Mechanical properties may vary depending on welding parameters, base materials, and shielding gas.

Shielding Gas

  • EN ISO 14175 – TIG: I1 (Argon)

Welding Positions

  • EN ISO 6947 – PA, PB, PC, PD, PE, PF, PG
Diameter3.2
Wire ClassificationSG1: Mild steel to mild steel solid wire
BrandWeld Star
Weight5Kg
