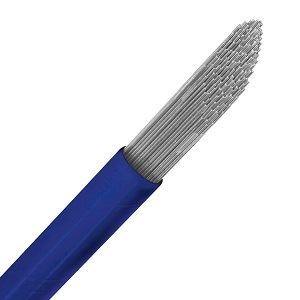

3.2mm 5183 TIG Filler Weld Star Pack 2.5Kg

3.2mm 5183 TIG Filler Weld Star Pack 2.5Kg

Stock Code: FAW00039887
Manufacturer Part No: 6011100478
£32.40 (exc VAT) per Pack
Quantity: - +

High-Strength Aluminium TIG Wire for Marine and Structural Applications


Weld Star ER 5183 is a premium aluminium TIG wire designed for welding high magnesium alloys where superior tensile strength, corrosion resistance, and fracture toughness are essential. With excellent performance in marine and offshore environments, this filler wire is ideally suited for structural fabrication requiring durability and impact resistance.


Its good weldability and mechanical properties make it a reliable choice for industries such as shipbuilding, automotive, rail, and tank manufacturing. Preheating of thicker sections to 150°C is recommended to ensure optimal results. Note: Not suitable for elevated temperature service.


Key Features


• High magnesium (AlMg4.5Mn) alloy for superior tensile and yield strength
• Excellent corrosion resistance, especially in seawater conditions
• Good weldability and high impact resistance
• Ideal for marine, transport, and structural aluminium applications
• Supplied in 1000 mm cut lengths in 2.5 kg packs


Typical Applications


• Shipbuilding and offshore structures
• Railcars and heavy-duty vehicle bodies
• Pressure vessels and storage tanks
• Marine and coastal equipment fabrication
• Structural frames in harsh environments


Suitable Base Materials Include


• AlMg4.5Mn, AlMg5, AlMg2Mn0.8, AlZnMg1, AlZnMgCu0.5
• G-AlMg10, G-AlMg5, G-AlMg3Si, G-AlMg5Si
• EN AW 5086, 5083, 5019, 6060, 6005A, 6082, 6061, 7020
• 3.3545, 3.3547, 3.3535, 3.3555, 3.3206, 3.3210, 3.2315, 3.3211, 3.4335
• EN AC 51300, EN AC 51400


Standards


• EN ISO 18273 – S Al 5183 (AlMg4.5Mn0.7(A))
• AWS A5.10 – ER 5183


Welding Positions


Conforms to EN ISO 6947:
PA, PB, PC, PD, PE, PF, PG


Shielding Gas


Per EN ISO 14175:
• TIG: I1 (Argon), I3 (Helium)

Diameter3.2
Wire Classification5183: High-strength Al to Al
BrandWeld Star
Weight2.5Kg
