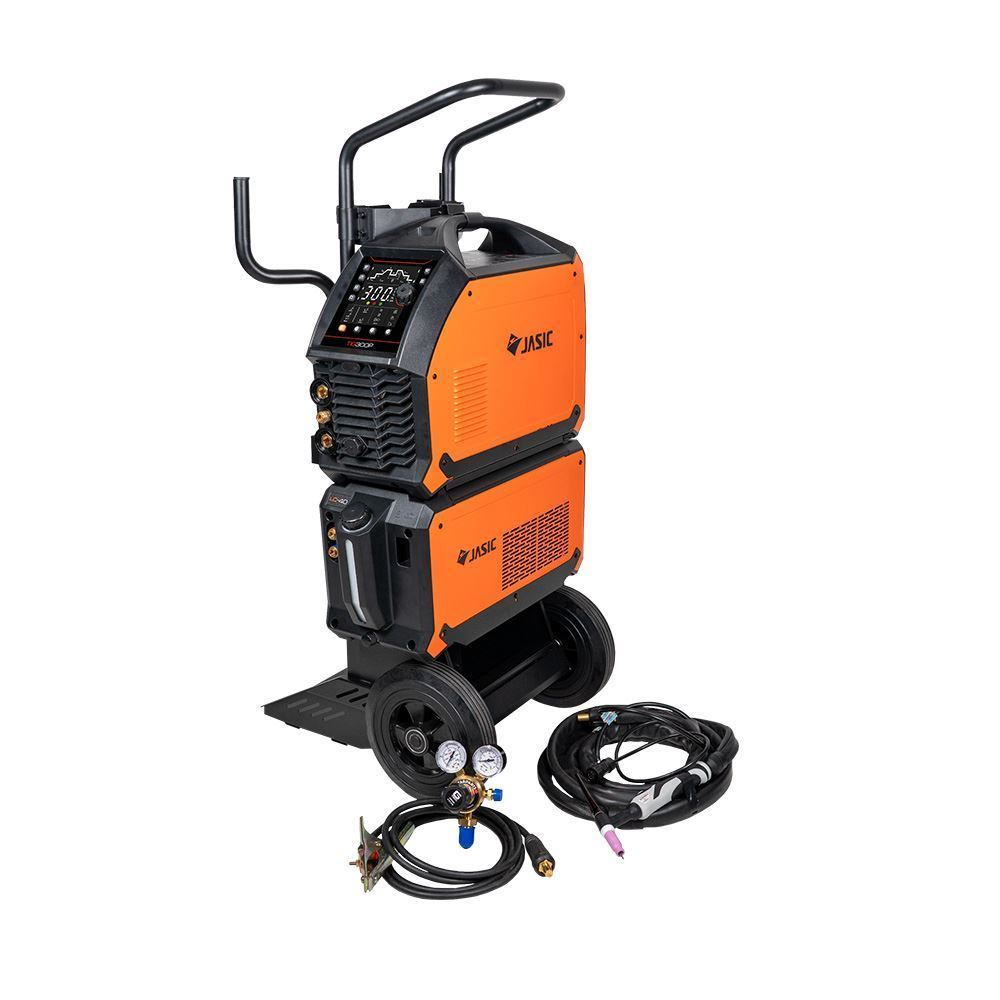

Jasic EVO TIG 300P Pulse DC Inverter with Water Cooler and Trolley 400V – Model No: ET-300P- WC

High performance 300 amp DC TIG inverter with integrated water cooling system, designed for industrial fabrication, continuous welding operations, and demanding workshop or site applications.

Product Overview

The Jasic EVO TIG 300P DC Pulse Water Cooled inverter (ET 300P WC) is a professional grade welding system engineered for precision TIG welding in heavy duty environments. Featuring advanced inverter technology, pulse functionality and digital control, it delivers excellent arc stability, energy efficiency and consistent weld quality.

Supplied as a complete package with integrated LC 40 water cooler and trolley, this three phase system is ideal for extended welding cycles and high amperage applications. With flexible remote control options and robust industrial design, it is built for professional fabrication and production use.

Key Features

  • DC TIG pulse welding for steel, stainless steel, and non-ferrous materials
  • 300A output for heavy duty and continuous welding
  • Three phase 400V input for industrial environments
  • Integrated LC 40 water cooling system for extended duty cycles
  • Full pulse control for precise heat input and weld consistency
  • ClearVision HD digital display for easy parameter setup
  • Dash Arc HF ignition for reliable arc starts (99%+ success rate)
  • HF and Lift TIG ignition options
  • Program memory storage for repeatable welding operations
  • Smart Gas technology optimises shielding gas post flow
  • Intelligent fan and cooler control system
  • AVR generator friendly for site applications
  • 2T / 4T / Spot and Cycle trigger modes
  • Compatible with wired, wireless and app based remote controls
  • MMA capability with Hot Start, Anti Stick and Arc Force

Technical Specifications

  • Input Voltage: 400V, 3 phase
  • TIG Output Range: 5 – 300A
  • MMA Output Range: 10 – 270A
  • Duty Cycle: 40% @ max output (40°C)
  • Process: DC TIG Pulse / MMA
  • No Load Voltage: approx. 70V
  • Power Factor: 0.94
  • Efficiency: ≥85%
  • Protection Class: IP23S
  • Insulation Class: H
  • Dimensions: approx. 680 × 550 × 1170 mm (package)
  • Weight: approx. 32.2 kg

What’s Included

  • EVO TIG 300P inverter power source
  • LC 40 water cooler unit
  • Trolley (TR 03)
  • Water cooled TIG torch (4m)
  • Earth return lead and clamp
  • Argon regulator and gas hose
  • Connection leads and fittings
  • 5 year warranty (subject to registration)

Optional Accessories

  • Foot pedal control (wired or wireless)
  • Handheld and app based remote controls
  • Tungsten electrodes and filler rods
  • Argon gas cylinders
  • Protective welding equipment and consumables
BrandJasic
Ouput Amperage300
Power Supply400V
GeneratorNo
Materials WeldedSteel/Stainless
Material Thickness (mm) (Steel/St/St/Alum)10/10/
Application/UseProduction
