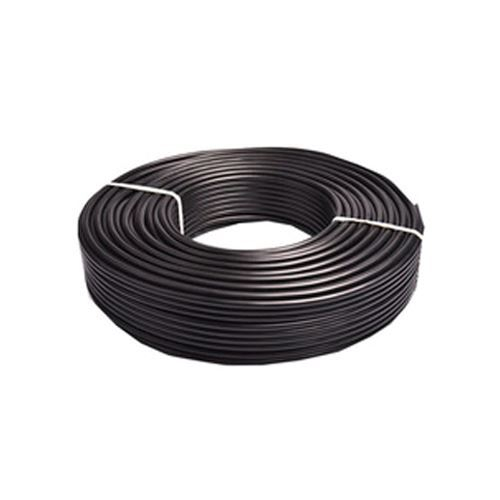

70mm2 50 Metre Welding Cable Single Insulated Black
70mm2 50 Metre Welding Cable Single Insulated Black

70mm2 50 Metre Welding Cable Single Insulated Black

Stock Code: FAW00038568
Manufacturer Part No: S70
Available for Despatch in 1 working days.
£940.00 (exc VAT) per Each
Quantity: - +

70mm² 50 Metre Welding Cable Single Insulated Black

Description
This 70mm² single insulated welding cable is designed for heavy-duty welding power applications where high current carrying capacity, flexibility and durability are essential. Manufactured with fine stranded copper conductors and a robust black insulating sheath, it offers excellent flexibility for workshop, fabrication and industrial environments. Supplied in a 50 metre reel, it is ideal for welding leads, earth return cables and custom cable assembly manufacture.

Key Features
• Single insulated welding cable
• Conductor cross-sectional area: 70mm²
• Reel length: 50 metres
• Black insulation sheath
• Maximum conductor wire diameter: 0.31mm
• Insulation thickness: 2.6mm
• Mean overall diameter: 15.6mm
• Maximum conductor resistance at 20°C: 0.272 Ohms/km
• Current carrying capacity at 60% duty cycle: 460 Amps
• Highly flexible stranded conductor construction
• Suitable for heavy duty welding and power transmission applications
• Part No: S70

Applications
• MIG welding equipment
• TIG welding equipment
• MMA / Arc welding equipment
• Earth return leads
• Welding machine cable assemblies
• Fabrication and engineering workshops
• Heavy duty industrial welding applications
