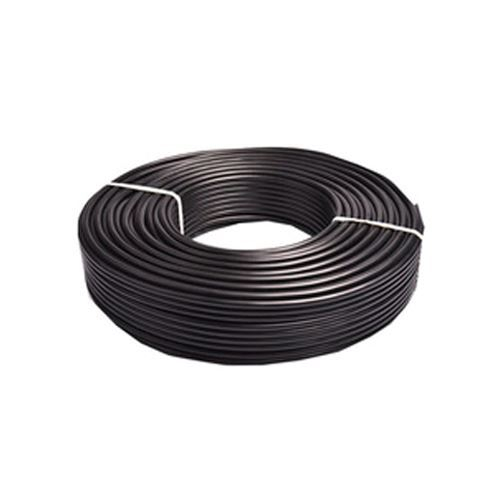

50mm2 100 Metre Welding Cable Single Insulated Black

Stock Code: FAW00038566
Manufacturer Part No: S50

Available for Despatch in 1 working days.

Descriptions

50mm² 100 Metre Welding Cable Single Insulated Black

Description
This 50mm² single insulated welding cable is designed for demanding welding power applications where high current carrying capacity, flexibility and durability are essential. Manufactured with fine stranded copper conductors and a robust black insulating sheath, it provides excellent flexibility and resistance to workshop and site conditions. Supplied in a 100 metre reel, it is ideal for welding leads, earth return cables and custom cable assembly manufacture.

Key Features
• Single insulated welding cable
• Conductor cross-sectional area: 50mm²
• Reel length: 100 metres
• Black insulation sheath
• Maximum conductor wire diameter: 0.31mm
• Insulation thickness: 2.4mm
• Mean overall diameter: 13.5mm
• Maximum conductor resistance at 20°C: 0.386 Ohms/km
• Current carrying capacity at 60% duty cycle: 365 Amps
• Highly flexible stranded conductor construction
• Suitable for heavy duty welding and power transmission applications
• Part No: S50

Applications
• MIG welding equipment
• TIG welding equipment
• MMA / Arc welding equipment
• Earth return leads
• Welding machine cable assemblies
• Fabrication and engineering workshops
• Heavy duty industrial welding applications
