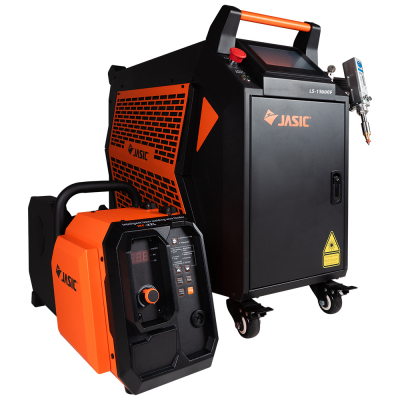

Jasic LS-15000F Laser Welder 1.5kW Single Wire Feed Unit (Model LS-15000F)
Jasic LS-15000F Laser Welder 1.5kW Single Wire Feed Unit (Model LS-15000F)
Jasic LS-15000F Laser Welder 1.5kW Single Wire Feed Unit (Model LS-15000F)
Jasic LS-15000F Laser Welder 1.5kW Single Wire Feed Unit (Model LS-15000F)

Jasic LS-15000F Laser Welder 1.5kW Single Wire Feed Unit (Model LS-15000F)

Stock Code: FAW00042348
Manufacturer Part No: ZXLS-15000F
Available for Despatch in 1 working days.
£10,999.00 (exc VAT) per Each
Quantity: - +

Jasic LS-15000F Fibre Laser Welding System 230V

Advanced 1500W fibre laser welding system delivering ultra fast, high precision welding with minimal distortion for modern fabrication and manufacturing environments.

Product Overview

The Jasic LS-15000F is a next generation handheld fibre laser welding system designed to deliver exceptional weld quality, speed, and efficiency. Using continuous wave laser technology, it produces clean, high strength welds with minimal heat input, reducing distortion and eliminating the need for extensive post weld finishing.

Engineered for professional fabrication environments, the LS-15000F offers up to 10x faster welding speeds compared to traditional TIG processes, while requiring significantly less operator skill. Its compact, mobile design and intuitive touchscreen control make it ideal for workshop, site, and production applications.

Key Features

  • 1500W fibre laser welding system with high precision output
  • Up to 10x faster welding than traditional TIG processes
  • Continuous wave laser for consistent weld quality
  • Minimal heat affected zone (HAZ) reduces distortion
  • Colour touchscreen control panel for intuitive operation
  • 4 roll wire feeder for smooth and stable feed
  • Water cooled system for high duty cycle performance
  • Spot and continuous welding modes
  • Ability to store job parameters for repeat work
  • Compact, mobile unit with small footprint
  • Low maintenance with long life laser source (100,000+ hours)
  • Model No: LS-15000F

Technical Specifications

  • Input Voltage: 1 Phase, AC 230V, 50Hz
  • Input Power: Approx. 5.8 kW
  • Laser Power: 1500W
  • Laser Type: Continuous Wave Fibre Laser
  • Wavelength: approx. 1080 nm
  • Electro Optical Efficiency: ≥40%
  • Cooling Method: Water cooled
  • Welding Thickness: Approx. 0.5 – 5mm (material dependent)
  • Fibre Cable Length: 6m
  • Shielding Gas: Argon / Nitrogen
  • Weight: Approx. 85kg


What’s Included

  • LS-15000F Laser Welding Power Source
  • Handheld laser welding torch
  • Single wire feed unit
  • Cooling system (integrated)
  • Operating manual

Optional Accessories

  • Dual wire feeder upgrade
  • Replacement lenses and consumables
  • Protective laser safety PPE
  • Enclosure systems / safety guarding
