Jasic PRO TIG 400 Pulse DC W/C 400V Inverter Package (Model JT-400P)

Stock Code: FAW00001556
Manufacturer Part No: ZXJT-400P

Available for Despatch in 1 working days.

Descriptions

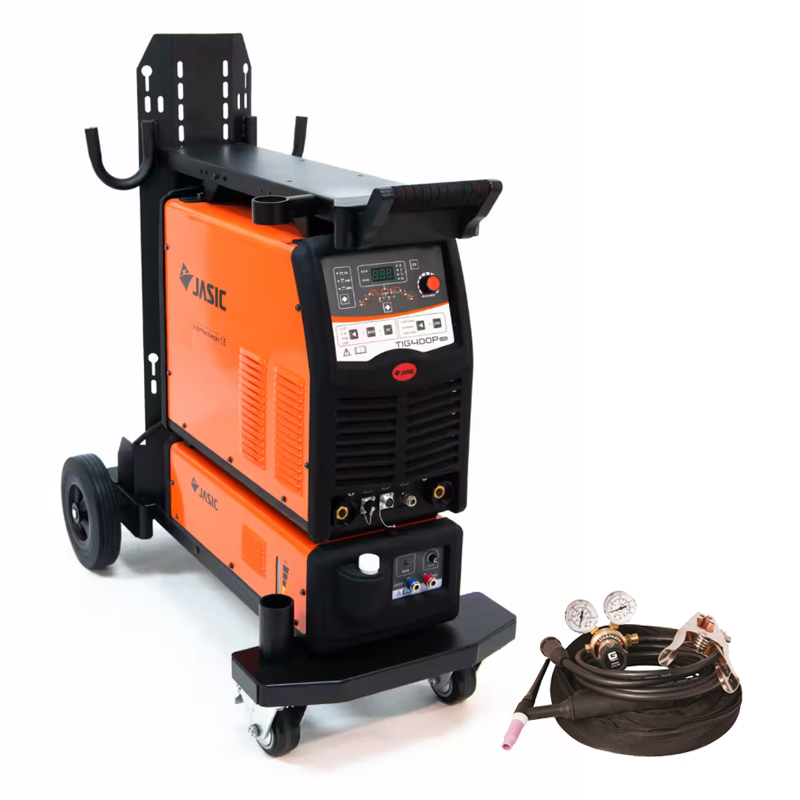

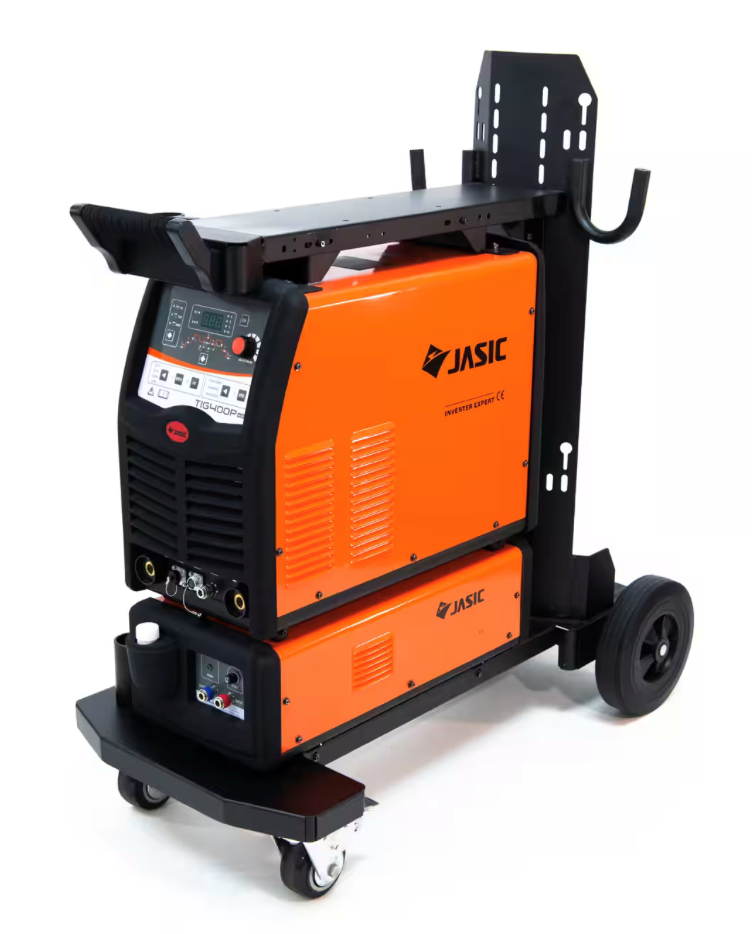

Jasic TIG 400P Pulse DC Inverter Package with Water Cooler and Trolley

Heavy duty 400 amp DC pulse TIG inverter with integrated water cooling, designed for high amperage welding, production environments and demanding industrial fabrication projects.

Product Overview

The Jasic TIG 400P DC Pulse inverter is a high performance industrial welding system engineered for precision TIG welding in heavy duty applications. Built using industrial grade IGBT inverter technology and an advanced MCU control system, it delivers excellent arc stability, high accuracy and consistent weld quality across a wide range of materials.

Supplied as a complete modular package with integrated water cooler and trolley, this three phase machine is designed for continuous welding at high output. Its advanced digital control panel with parameter memory and pulse functionality makes it ideal for fabrication, structural work and production welding environments.

Key Features

DC Pulse TIG and MMA welding capability
Up to 400A output for heavy duty industrial welding
Three phase 400V input for workshop and site use
Integrated water cooling system with trolley
Industrial grade IGBT inverter technology for efficiency and reliability
MCU control system for high precision welding performance
Digital control panel with software upgrade capability
Automatic 8 channel job memory storage
HF and Lift TIG ignition options
2T / 4T / Spot welding modes
Full slope control, crater fill, pre-flow and post flow adjustment
Gas test function for setup verification
On demand fan and cooling system
AVR generator friendly for site applications
Optional foot pedal remote control
Model No: JT-400P

Technical Specifications

Input Voltage: 400V, 3 phase
TIG Output Range: 5 – 400A
MMA Output Range: 30 – 400A
Duty Cycle: 400A @ 50% (40°C)
Process: DC Pulse TIG / MMA
No Load Voltage: approx. 68V
Power Capacity: approx. 18 kVA
Efficiency: approx. 85%
Power Factor: approx. 0.96
Protection Class: IP21S
Insulation Class: F
Dimensions: approx. 760 × 360 × 585 mm
Weight: approx. 90 kg (complete package)

View full product details

What’s Included

TIG 400P inverter power source
Water cooling unit
Trolley system
TIG torch and adaptor
Gas regulator
Earth return lead and clamp
Operating instructions
Machine supplied with no plug
5 year warranty (subject to registration)

Optional Accessories

Foot pedal control
Remote control units
Tungsten electrodes and filler rods
Argon gas cylinders
Protective welding equipment and consumables

Specifications

Brand	Jasic
Ouput Amperage	400
Power Supply	400V
Generator	No
Materials Welded	Steel/Stainless Steel
Material Thickness (mm) (Steel/St/St/Alum)	12+/12+/
Application/Use	Production
