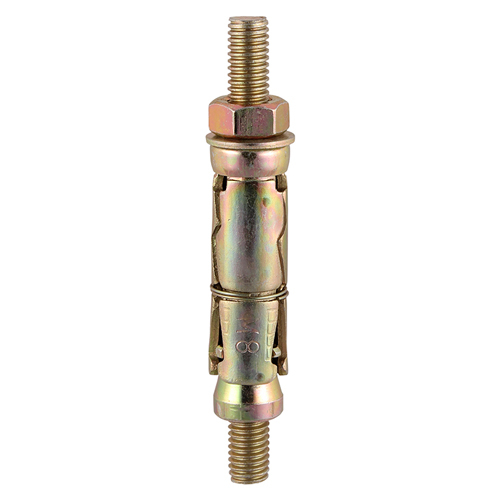

M10:30P Projecting Shield Anchor Zinc & Yellow Plated Timco Pack 15
M10:30P Projecting Shield Anchor Zinc & Yellow Plated Timco Pack 15

M10:30P Projecting Shield Anchor Zinc & Yellow Plated Timco Pack 15

Stock Code: FAW00015000
Manufacturer Part No: 1030PSHB
Available for Despatch in 1 working days.
£10.30 (exc VAT) per Pack
Quantity: - +

M10:30P Projecting Shield Anchor Zinc & Yellow Plated Timco - Pack 15

Description
A medium-duty projecting shield anchor designed for secure fixing into concrete, brick and stone. Manufactured by Timco, this anchor features a zinc and yellow plated finish for durability and general corrosion resistance. The three-segment expansion shield provides strong and reliable anchorage, while the projecting stud design allows fixtures to be positioned before tightening and enables easy adjustment or removal after installation.

Key Features

  • Medium-duty masonry fixing for reliable anchorage
  • Three-segment expansion shield for strong hold
  • Projecting stud allows accurate positioning before fastening
  • Bolt remains in shield for easy adjustment or removal
  • Zinc & yellow plated finish for corrosion resistance
  • Suitable for concrete, brick and stone
  • Thread size: M10
  • Maximum fixture thickness: 30mm
  • Drill hole diameter: 16mm
  • Minimum drill hole depth: approx. 70mm
  • Shield length: 60mm
  • Bolt length: approx. 100mm
  • Material: Carbon steel (grade 5.8)
  • Pack quantity: 15
  • Part No: 1030PSHB

Applications

  • Fixing brackets, rails and structural supports
  • Installing pipework, cable tray and trunking
  • Securing machinery and framework
  • General anchoring into concrete and masonry substrates
Quantity15
DiameterM10
Length30P
MaterialZinc & Yellow
Grip Length30
